Alber e-pilot

Brand: Alber

Categories:

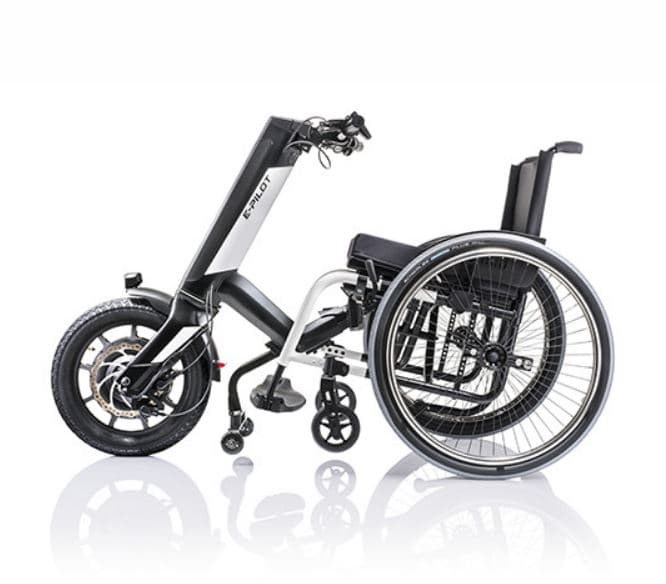

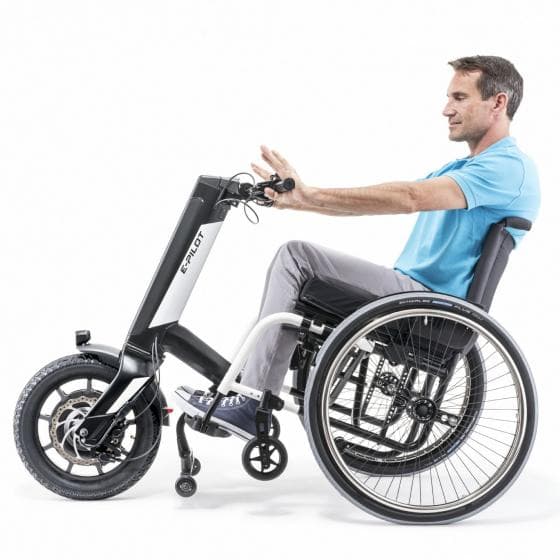

The e-pilot is an electric add-on scooter that is easily docked to the manual wheelchair. This significantly increases the mobility and independence of the wheelchair user.

The key product advantages at a glance:

  • Intelligent docking mechanism to facilitate docking and undocking the e-pilot in seconds
  • Reverse gear for easy maneuvering
  • Traction assist on a smooth surface for safe starting
  • Large operating range thanks to the modern lithium-ion battery pack allowing a range of up to 50 km
  • Superior driving characteristics thanks to noiseless and efficient direct drive
  • Large front wheel for easily overcoming curbs or uneven ground surfaces
  • Two hydraulic brakes for dual safety
  • Great flexibility through individual mounting on most manual wheelchairs

General:

  • Weight of the person max. 100 kg
  • Permissible total weight max. 135 kg
  • Climbing capability up to 10 %
  • Braking capability up to 15 %

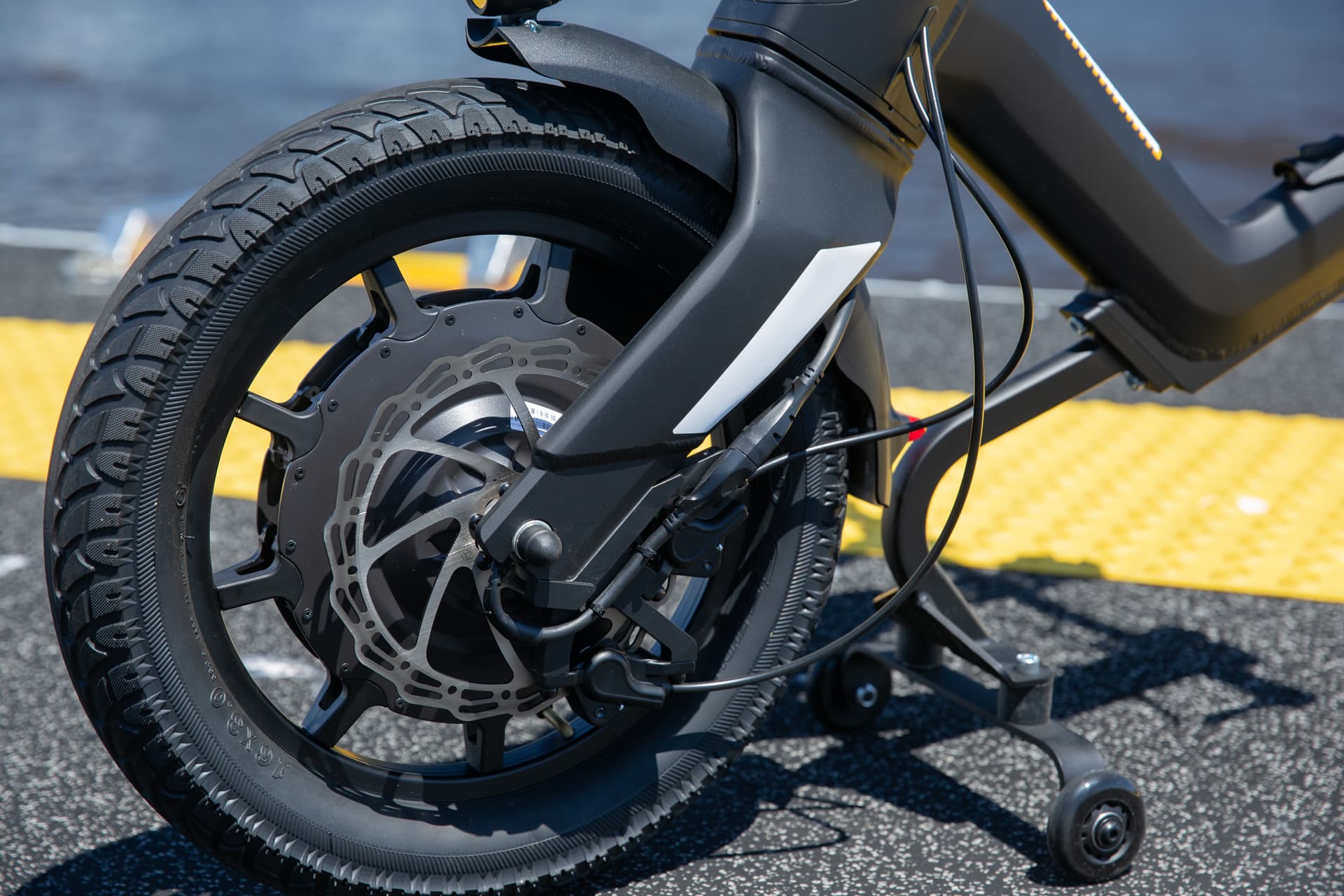

Drive wheel:

  • Size / tires 16″ / 16 x 3.00
  • Motor power rating 250 W
  • Motor power max. 650 W
  • Operating voltage 36 V
  • Max. torque 40 Nm

Speed:

  • 0.5 – 20 km/h
  • Standard speed 6 km/h or 10 km/h. For speed upgrade up to 20 km/h purchase of Mobility Plus Package necessary.

Battery pack:

  • Battery cells 36 V, 13.8 Ah
  • Leak-proof and maintenance-free, lithium-ion battery, 24-month guarantee
  • Battery capacity 496 Wh
  • Range up to 50 km depending on the ground surface, the weight of the user, temperature and terrain

Display:

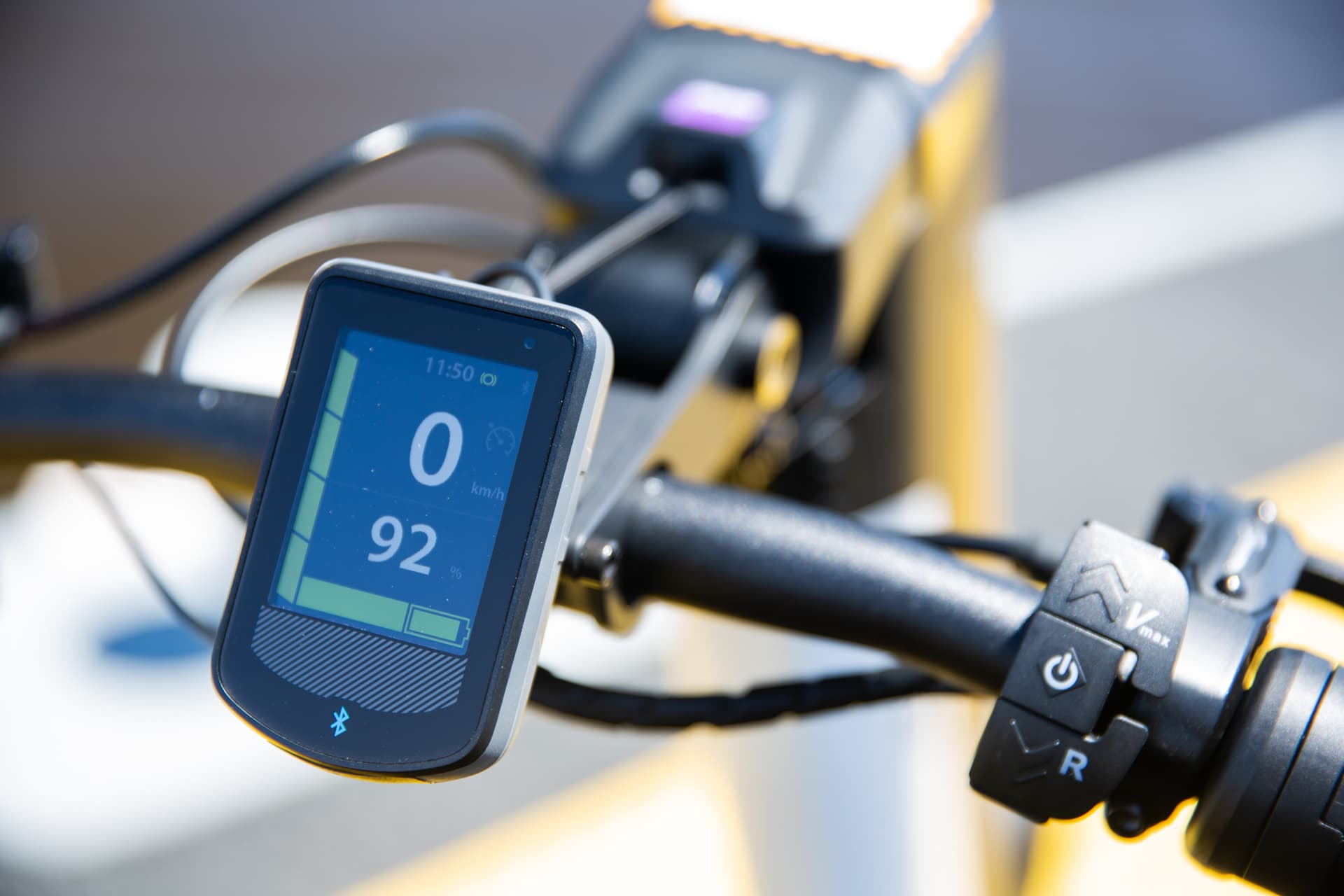

  • Illuminated TFT display Full colour display 2,4″ with drive information, tour data (time, distance, range), bluetooth connect

Control unit left:

  • Functions Light, horn

Control unit right:

  • Functions ON/OFF, menu, speed select in 4 steps, reverse gear

Further functions:

  • Driving modes (Eco, Tour, Sport), traction assist, USB Charging adaptor (max. 1.3 A)

Menu languages:DE, GB, FR, NL, IT, ES, SE, NO

Charger:

  • Input voltage 230 V (AC), 50 Hz, automatic charging and switch-off mechanism
  • Output voltage 45 V (DC)
  • Charging current 4 A
  • Charging time approx. 4 hours with an empty battery pack

Weight:

  • Total weight 18.4 kg
  • Total weight without battery pack 15.5 kg
  • Battery pack 2.9 kg
  • Drive wheel 6.5 kg
  • Complies with Medical Device Directive 93/42/EEC
