Quantum Edge Z
Brand: Quantum Wheelchairs
Categories:

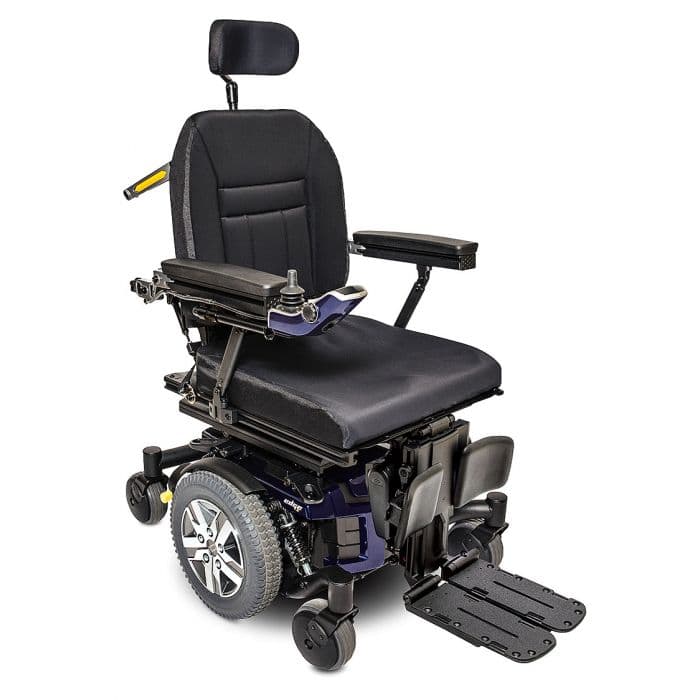

The Quantum Q6 Edge® Z Power Chair utilises powerful 4-pole motors for maximum torque and Mid-Wheel 6® Design for aggressive outdoor performance and precision indoor maneuverability.
Available with optional iLevel® power adjustable seat height, the Q6 Edge® Z Power Wheelchair accepts a broad range of exclusive seating and electronics options for unmatched adaptability and rehab capability.
WHEELS: 14” Solid
CASTER WHEELS: Front: 6” Solid
Rear: 6” Solid
ANTI-TIP WHEELS: N/A
MAXIMUM SPEED:
- Standard: Up to 6 mph
- Optional: Up to 8 mph10
GROUND CLEARANCE: 3” at frame base
TURNING RADIUS: 2 19.75”
OVERALL LENGTH: 2 35.6”
BASE WIDTH: 26.25”
SEATING SIZES:
- SYNERGY® Width: 10-24” Depth: 10-24”
- TRU-BALANCE® 3 STATIC Width: 12-24” Depth: 12-24”
- TRU-BALANCE® 3 POWER TILT Width: 12-24” Depth: 14-24”
- TRU-BALANCE® 3 LIFT Width: 12-24” Depth: 12-24”
SEAT-TO-FLOOR HEIGHTS:
- SYNERGY®/TRU-BALANCE® 3 STATIC 5 17.5-19.5”
- TRU-BALANCE® 3 POWER TILT 5 18.125-20.125”
- TRU-BALANCE® 3 iLEVEL® & TILT 5 19.375-21.375”
MANUAL RECLINE: Yes
BATTERY SIZE: 3 Group 24
BATTERY WEIGHT: 52 lbs. each
AVAILABLE ELECTRONICS:
- 75A Q-Logic 2 NE+
- 100A Q-Logic 2 EX
BATTERY CHARGER: 8A Off-board
MOTOR PACKAGES: 4-Pole Mid-Wheel 6
WEIGHT CAPACITY: 300 lbs.
BASE WEIGHT: 143.5 lbs.
