Quantum Q6 Edge 2.0 - iLevel

Brand: Quantum Wheelchairs

Categories:

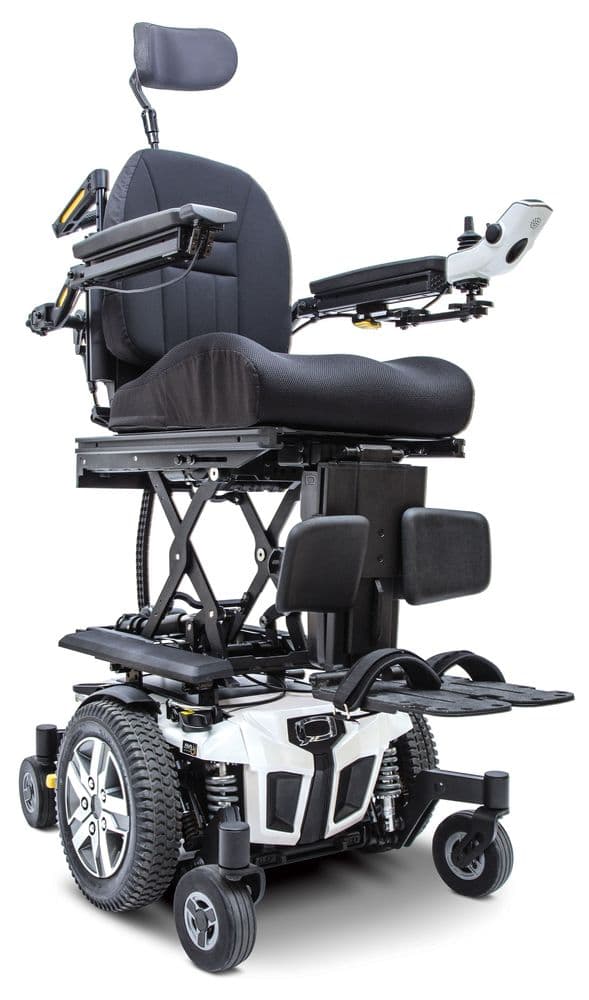

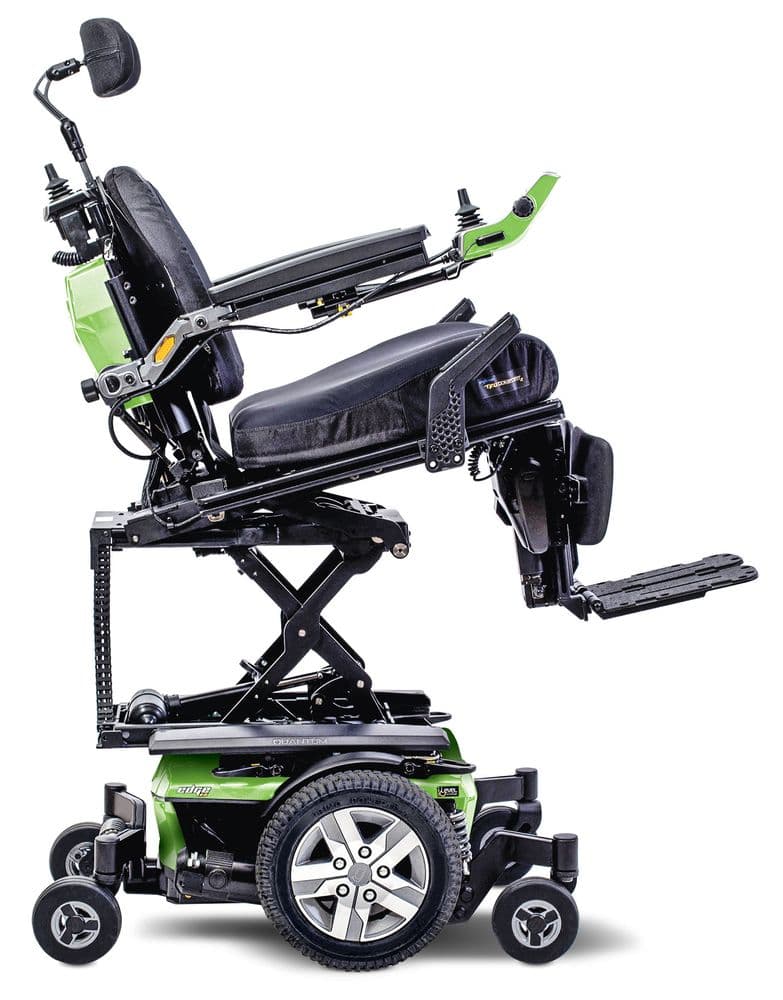

With features like standard 6.2 mph motors, advanced responsiveness, and optional iLevel® power adjustable seat height, the Q6 Edge® 2.0 X is engineered to meet the performance needs of the most active user. The Q6 Edge® 2.0 X accepts a complete range of seating and electronics options to deliver exceptional rehab capability at an excellent value.

Drive wheelsStandard: 35.56 cm (14”) Solid Optional: 35.56 cm (14”) Pneumatic
CastorsFront: 15.24 cm (6”) Solid Rear: 15.24 cm (6”) Solid20cm (8") castors also available
Maximum speedUp to 9.6km/h
Ground clearance6.9cm
Turning radius (without front riggings)52.1cm (20.5”) with 15.24 cm (6”) casters
Overall length (without front riggings)32.23” with 15.24 cm (6”) casters40.48” with 20 cm (8”) casters
Base width62.2 cm (24.4”)
Seat widthStatic seat: 30 - 56 cm (12-22”)Power lift and tilt: 30.5 - 56 cm (12-22”)
Seat depthStatic seat: 30 - 56 cm (12-22”)Power lift and tilt: 30.5 - 56 cm (12-22”)
Seat to floor heightStatic seat: 42-47cm (16.5-18.5”)Tilt and tilt/lift: 44-49.5 cm (17.5-19.5”)
Manual reclineYes
BatteriesNF-22, 55Ah
Battery weight17.24kg each
Available electronics120Ah Q-Logic 3
Motor packages2 pole
Battery charger8A Off-board
Weight capacity136kg
Base weight63kg with 15.24cm (6") castors
