Brand: TiLite

Categories:

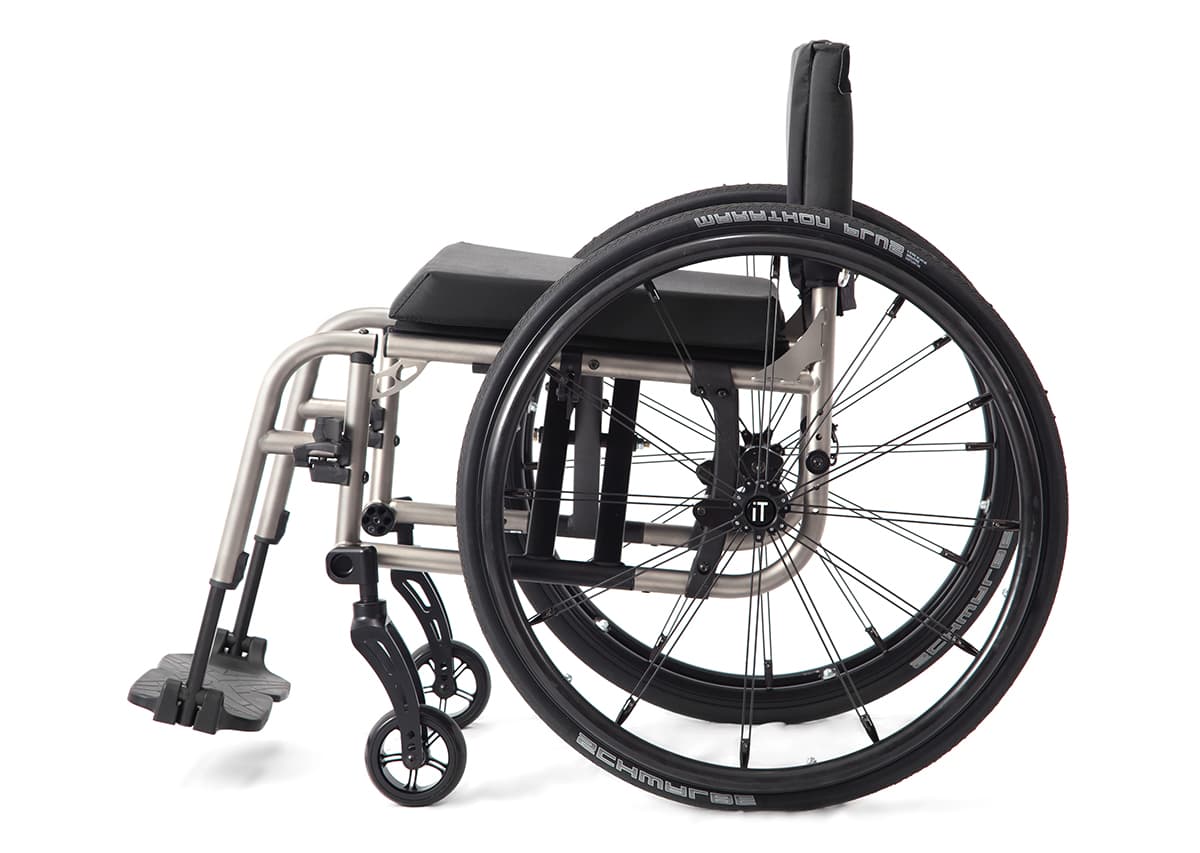

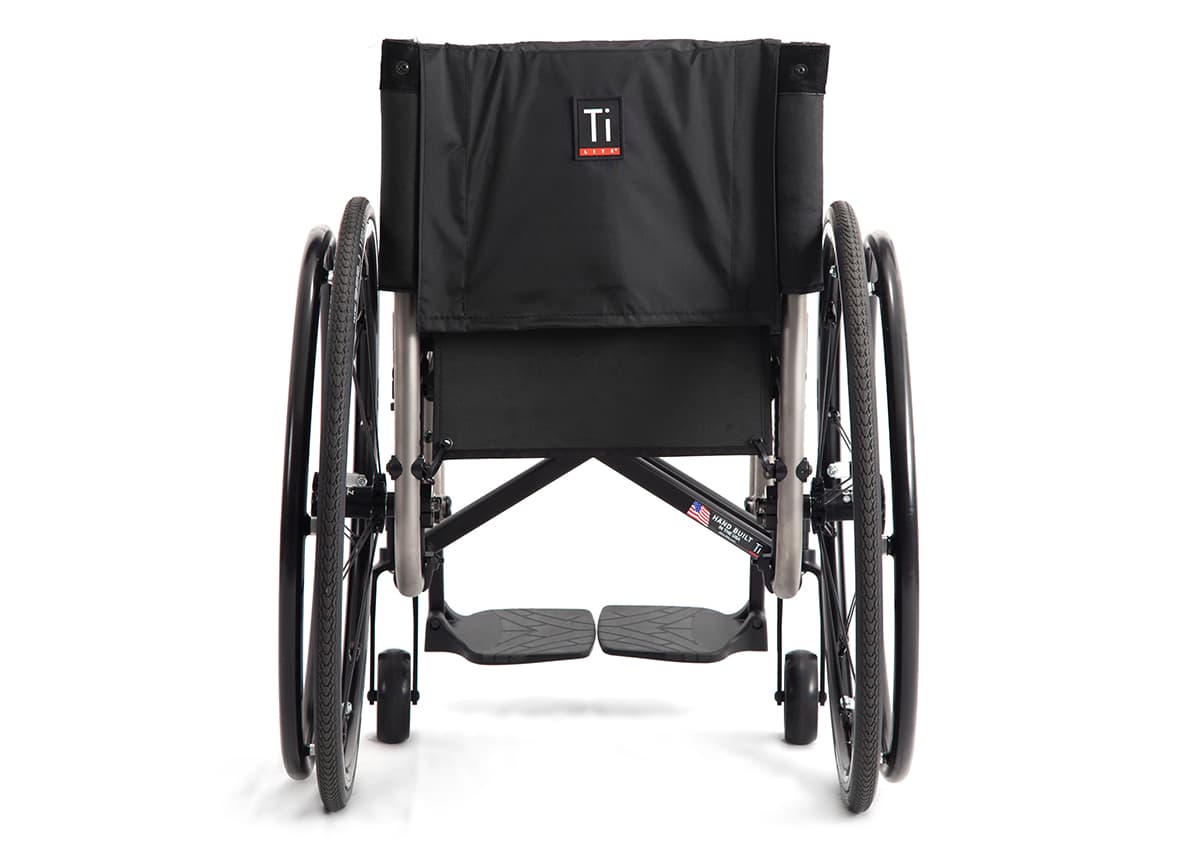

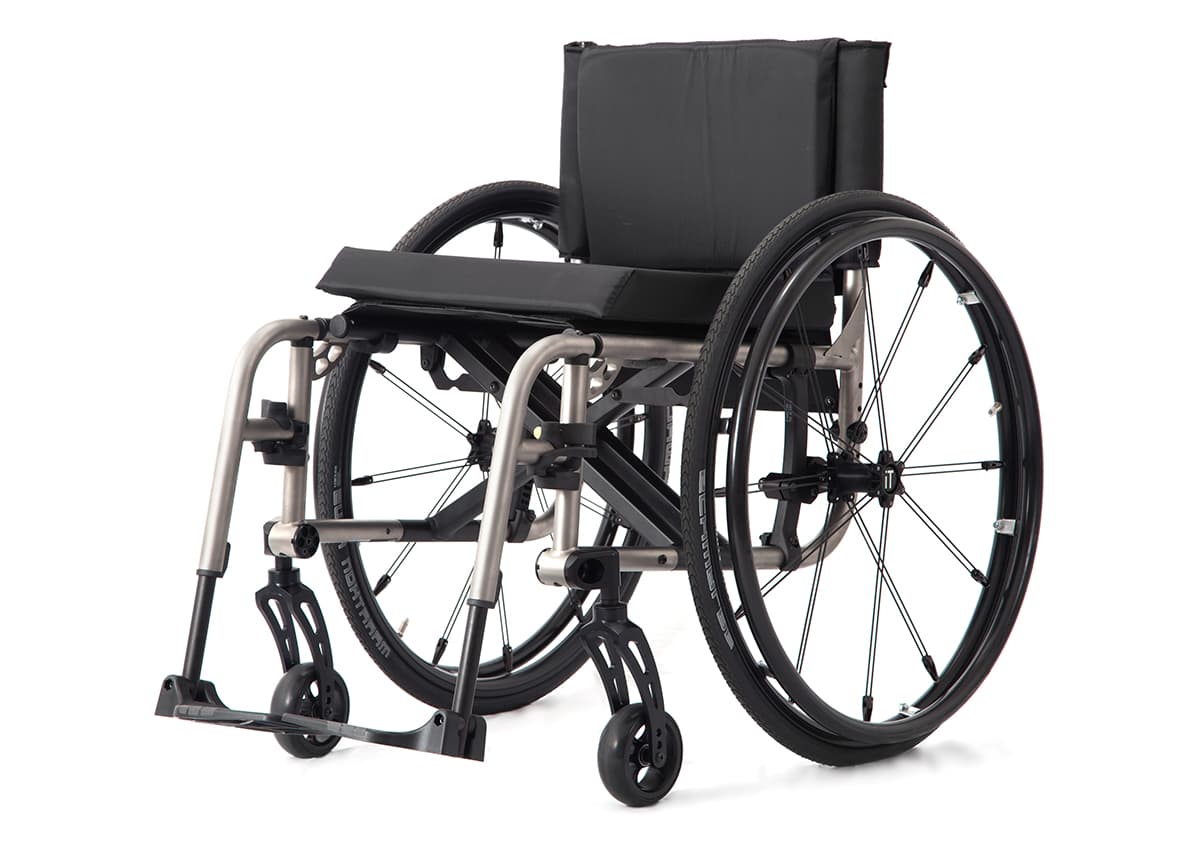

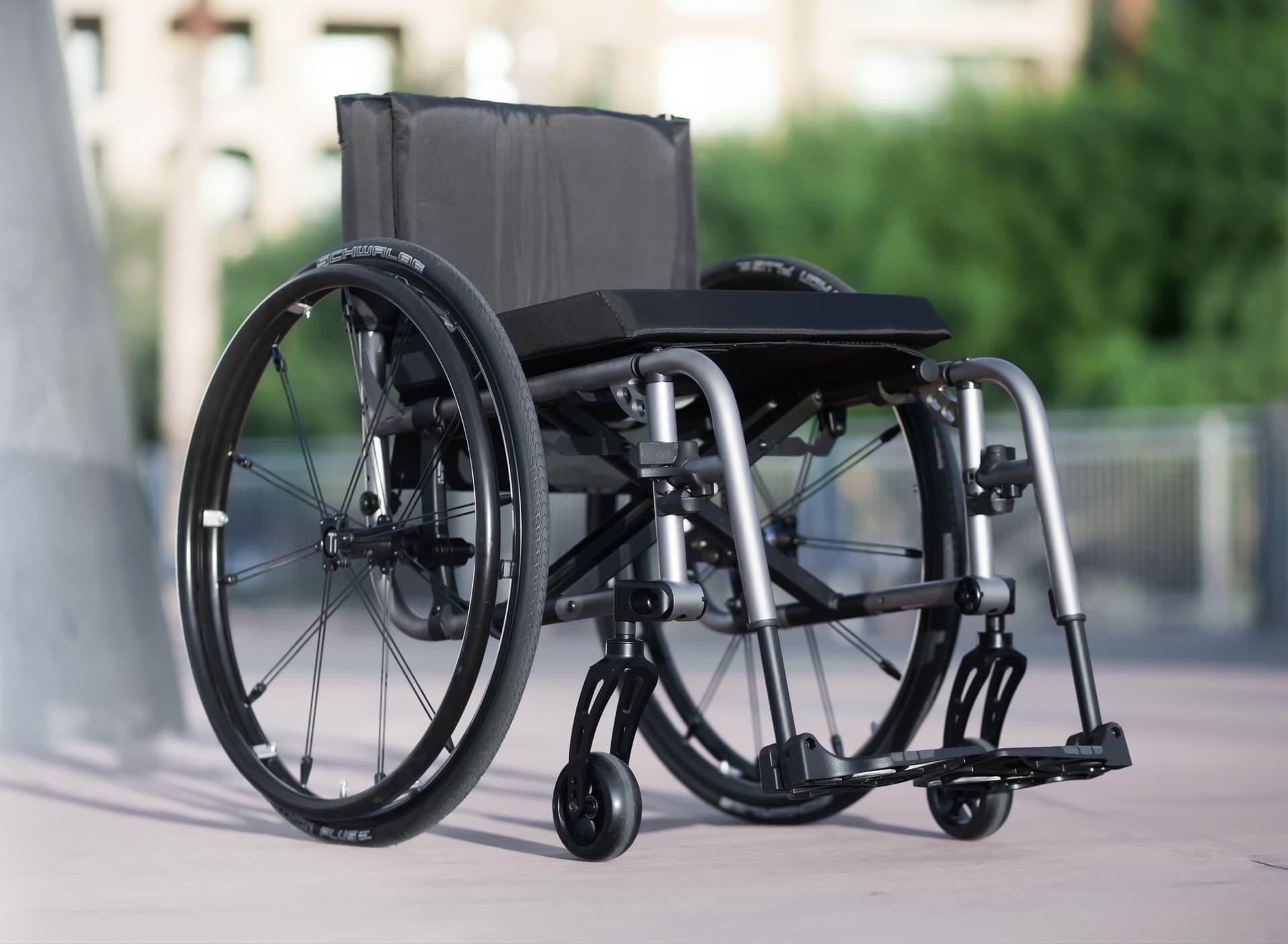

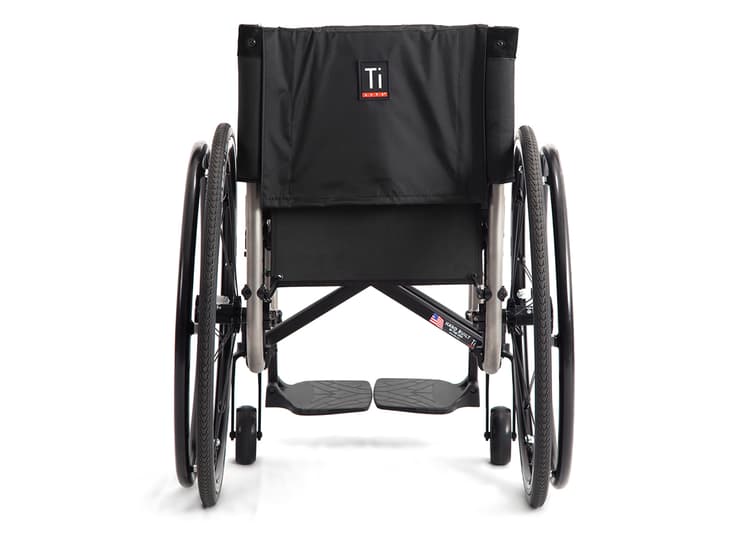

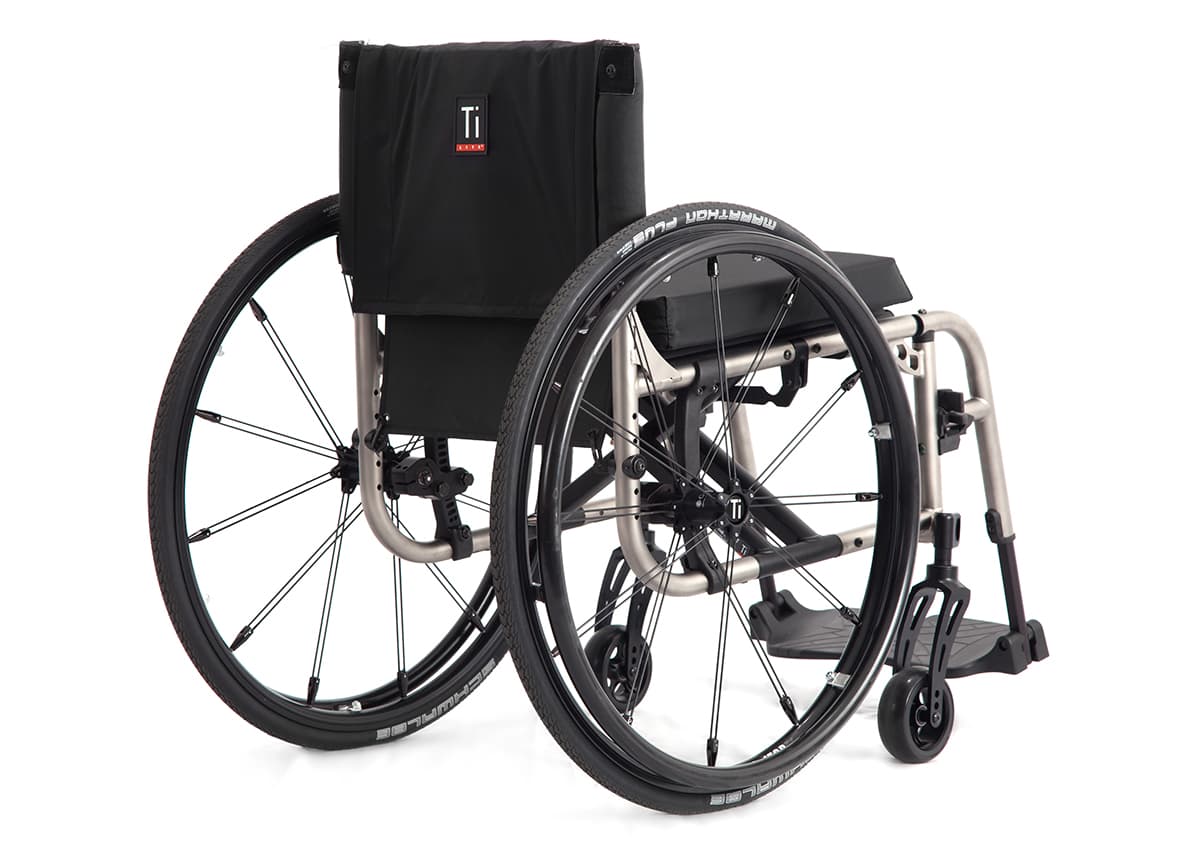

The 2GX mixes the advantages of a modular folding frame with the high strength and vibration dampening characteristics of titanium. With full adjustability!

FEATURING:

  • Ability to add aftermarket seating systems.
  • Switching fixed and swing away front ends.
  • Growing chair width and/or depth (parts required).

The Tilite Tru-Fit System boasts adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system gives you the option to fine-tune fit your chair because you are not limited to a series of pre-set holes. Also, instead of bolting through frame-weakening holes in a normal folding chair frame, components clamp directly onto the frame. This removes one of the main stress points on today’s wheelchairs by reducing the number of holes in the frame.

Improved Speedloader Design makes for easier, more durable adjustments and two positions (forward/backwards) for caster positioning.

Redesigned Footplates are lighter with a non-slip surface and an updated look.

Curved Axle Plate allows for the best range in centre of gravity adjustment and rear seat height adjustment.

Snap-In Seat Saddles lock the cross tubes in place on TiLite’s rigid folding mechanism. This feature helps the 2GX achieve rigid chair performance.

The 2GX utilises Machined Plugs to create rear wheel camber. In contrast to using washers to create rear wheel camber, the use of machined camber plugs precisely aligns the 2GX’s rear wheels, allowing the chair to consistently track straight.

Balanced Ride

Using the free balanced ride selector, you get a more accurate choice of chairs that is suitable for your everyday life. Click the find my balanced ride below to get started.

FIND MY BALANCED RIDE

Technical Specifications

Minimal Seat Width: 12" - Maximum Seat Width: 22"

Minimal Seat Depth: 12'' - Maximum Seat Depth: 20"

Frame Style: Folding

Frame Material: Titanium

Frame Options: Fixed Front End, Swing Away (All-In-One Swing In, Swing Out, & Removable), Hemi Height Frame, Heavy Duty Frame, Power Adaptable Frame, Reinforced Frame

Ti Fit: N/A

Adjustability: Full adjust

Growable: Optional

Custom Configuration: Yes

Camber: 0°, 2°, 4°, or 6°

Front Frame Angle: Fixed Front - 70°, 80°, or 85°, Swing Away - 70°, 80°, 85°, or 90°

Footrest Width Options: Standard Taper

Seat Back Type: Folding Seat Back

Center Of Gravity Adjustment: 6"

Transit Options: Transport Bracket (unoccupied)

Movement Style: Full assistance, Both legs mostly, Hemi (one leg and one arm)

Weight Limit: 120.2 kg

Transport Weight*

Fixed Front - 5.9 kg
Swing Away - 7 kg

Warranty:

Five Years on Frame
One Year on TiLite Components

* Weights and widths based on 16” x 16” chair with 0º camber, minimum rear
wheel spacing and all standard features. Rear wheels are not included in
transport weight. For reference, a pair of standard 24” rear wheels weighs 3.27
kg
