Brand: Raz

Categories:

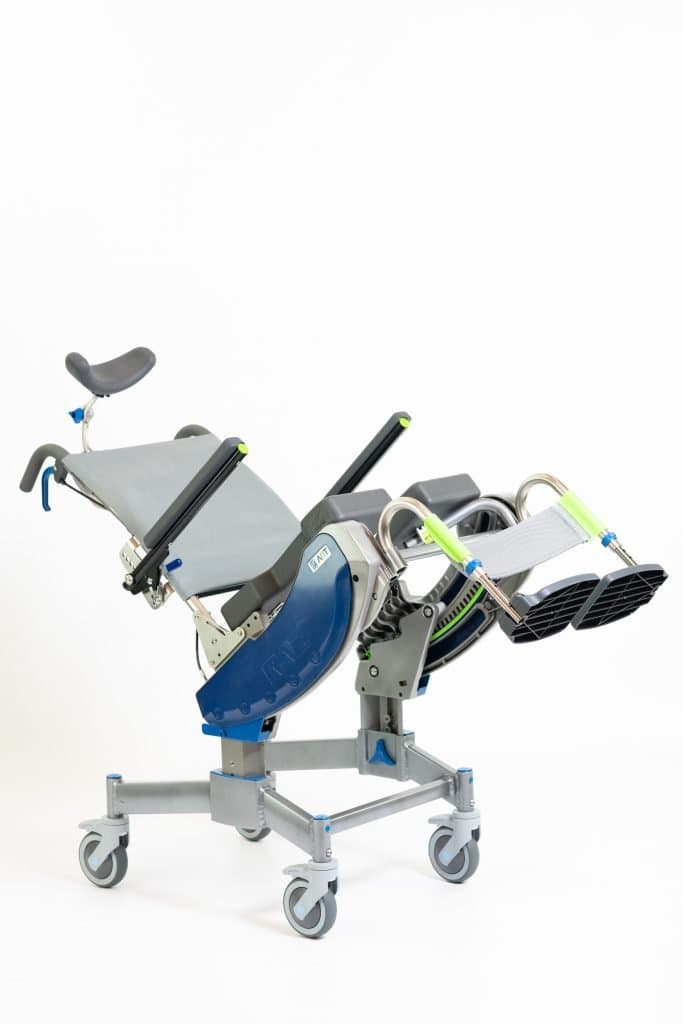

Raz-ART - An attendant rotational tilt mobile shower commode chair that tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes a patented, dual-arc, orbital tilt system which gives theRAZ-ARTthe smallest footprint and lowest tilt effort of any shower chair on the market.

A Unique, aluminium frame design provides two ranges of tool-less height adjustment (15”-18" and 19.5" - 22.5”). The patent-pending tilt-locking system eliminates cable “looping,” which is prevalent in other designs.

The RAZ-ART mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS) famous within the RAZ range, adjustable-tension back upholstery, moulded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, aluminium frame fits over most toilets and is designed for easy side and front access by the user or attendant.

Tilt Function

  • seat frame tilts for extra pressure reduction and comfort
  • locking pneumatic springs provide infinite adjustment up to 40°
  • pressurized springs also help lift the seat frame to an upright position
  • conveniently located tilt triggers provide smooth tilt control

Moulded Seat

  • Contoured for pressure reduction and pelvic stability
  • Soft integral-skin foam for comfort and durability
  • Available with open or bridged front - Also available with different hole locations (Left, Right, Front, Rear) and custom-shaped apertures.
  • Available sizes: 18″Wx16″D, 18″Wx19″D

Adjustable Footrests

  • Easily removable for transfers and cleaning
  • Swing in and out easily
  • Flip-up footplates
  • Adjust lower leg length without tools
  • Available in regular length 16″-20½” and extended length 18″-22½”

Ischial Pelvic Alignment System

  • Provides 2” of fore/aft adjustment allowing the seat to be aligned with the pelvis
  • Allows centring of the aperture (opening) around the users’ ITs
  • Seat safely locks in place for transfers
  • Seat can be removed easily for cleaning
  • optional spacers for anterior or posterior seat angle adjustment [Z491]

Fixed Back

  • Moulded, flexible vinyl upholstery – suitable for infection control environments
  • Includes flip-up, angle-adjustable arms
  • 18” back height
  • Locking armrest upgrade available [Z710]

Adjustable Pivot Posts

  • Provides 4” of seat height adjustment without having the frame/toilet bowl interfere

Headrest (small, standard)

  • Headrest size approximately 10” W x 4” H
  • Integral skin foam headrest which aids in easy cleaning
  • Headrest is shaped to cradle the head and can be adjusted to suit the client's position
  • Headrest support can be adjusted infinitely forward and backwards within a 5½” range, and vertically within a 11½” range
  • Headrest angle can be adjusted for ultimate comfort
  • Headrest – small mounting fixtures are included with Raz-AT (Z300) and Raz-AT600 (Z360) chairs and optional on all other Raz models

Commode Pan

  • Injection-moulded pan is designed for function
  • Includes a lid for splash and odor control
  • A wide handle angled at 45 degrees provides better ergonomics
  • The sloped front of the pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
  • Receiver brackets under the seat are visible from the rear of the chair, making it easier to slide the pan into place
  • Fits in a standard autoclave and Arjo Tornado Washer to assist with cleaning.
SPECIFICATIONSRaz-ART (attendant rotational tilt)
WEIGHT CAPACITY350 lbs (160 kg)
OVERALL WIDTH (with standard armpad)22.5” (57 cm)
OVERALL LENGTH WHEN UPRIGHT – with head support and standard foot supports in the middle positionUpright: 35” (89 cm) / Tilted to 40°: 50.5” (128 cm)
SEAT WIDTH (commode seat)18" (46 cm)
SEAT DEPTH (front of back post to front of seat)16” – 18” (40.5 – 46 cm) or 19” – 21” (48 – 53 cm)
CLEARANCE HEIGHT UNDER SEAT– With pan brackets- Lower Range: 15" – 18” (38 – 46 cm)
  • Higher Range: 19" – 22” (48 – 56 cm)
    – Without pan brackets- Lower Range: 15.5” – 18.5” (41 – 49 cm)
  • Higher Range: 19.5” – 22.5” (51 – 59 cm) | | ARMREST HEIGHT ABOVE SEAT - above standard moulded seat | – 18"H Fixed Back 9” (23 cm)
    – 15"H Adjusta-Back 5.5” – 8.5” (14 – 21.5 cm) in 0.5” (1.25 cm) increments
    – 17"H Adjusta-Back 6.5” – 9.5” (16.5 – 24 cm) in 0.5” (1.25 cm) increments
    – 20"H Adjusta-Back 7.5" – 10.5" (19 – 27 cm) in 0.5” (1.25 cm) increments
    – 24"H Adjusta-Back 8.5" – 11.5" (21.5 – 29 cm) in 0.5” (1.25 cm) increments | | SEAT-TO-FLOOR HEIGHT – 1” (2.5 cm) increments
    – above standard moulded seat | Lower Range: 20” – 23” (51 – 58.5 cm) Higher Range: 24” – 27” (61 – 68.5 cm) | | PRODUCT WEIGHT (with footrests) | 69 lbs (31 kg) | | FRAME MATERIAL – base frame and seat frame
    FRAME MATERIAL – back frame and footrests
    HARDWARE MATERIAL | Powder-Coated Aluminum2
    Stainless Steel2
    Stainless Steel2 |
