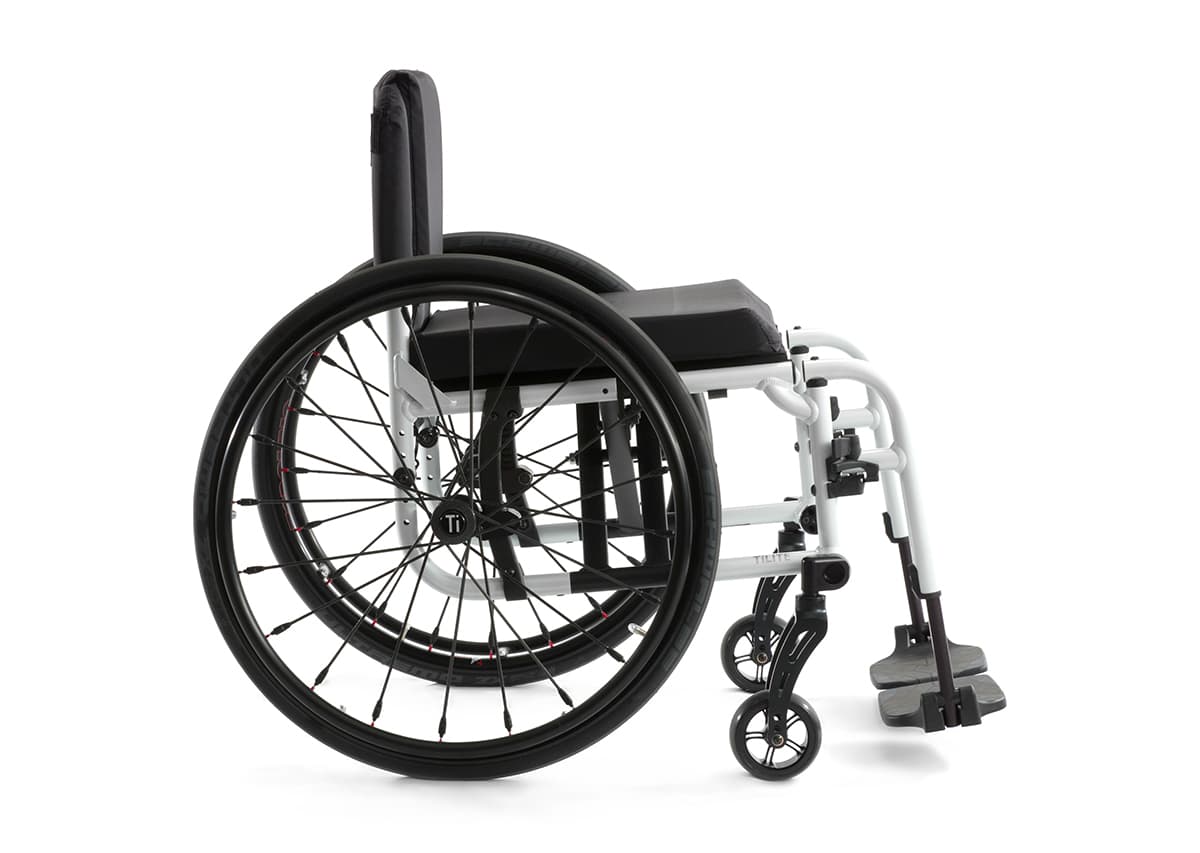

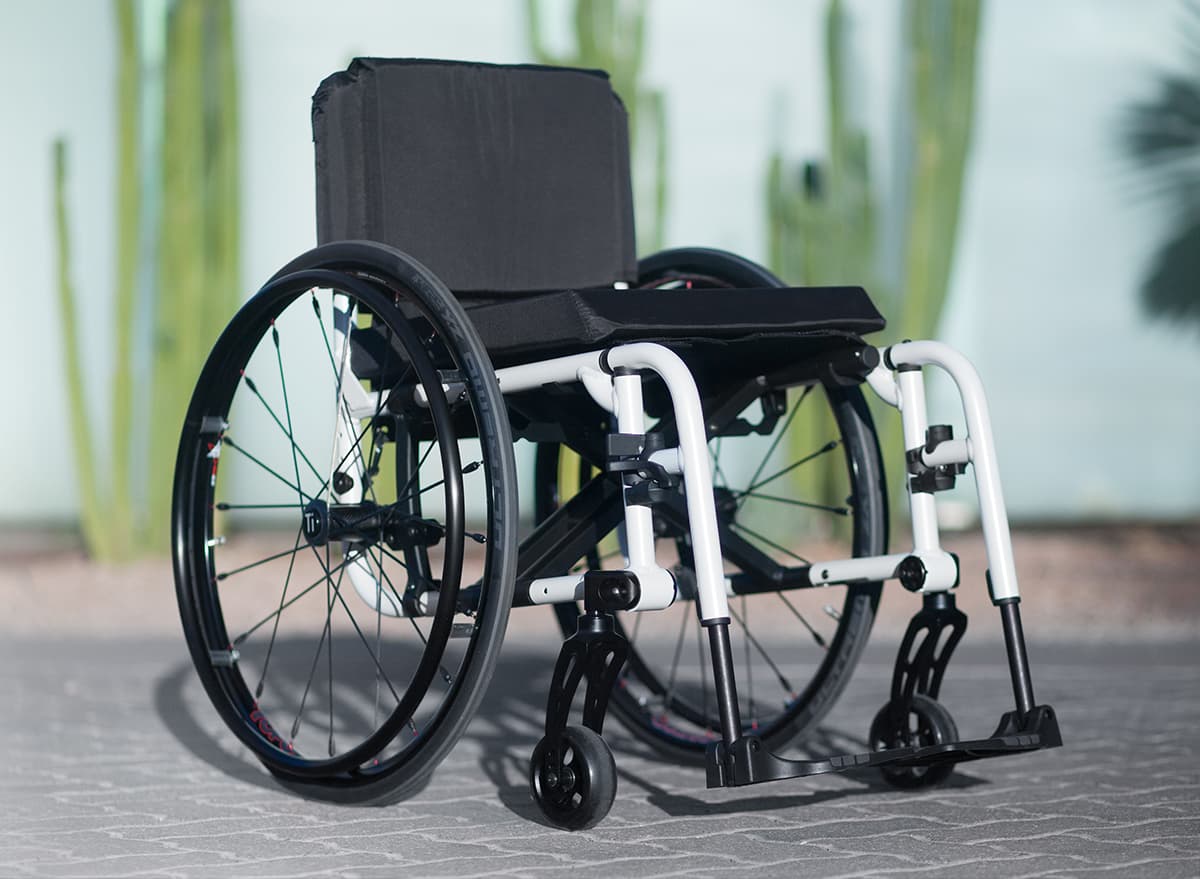

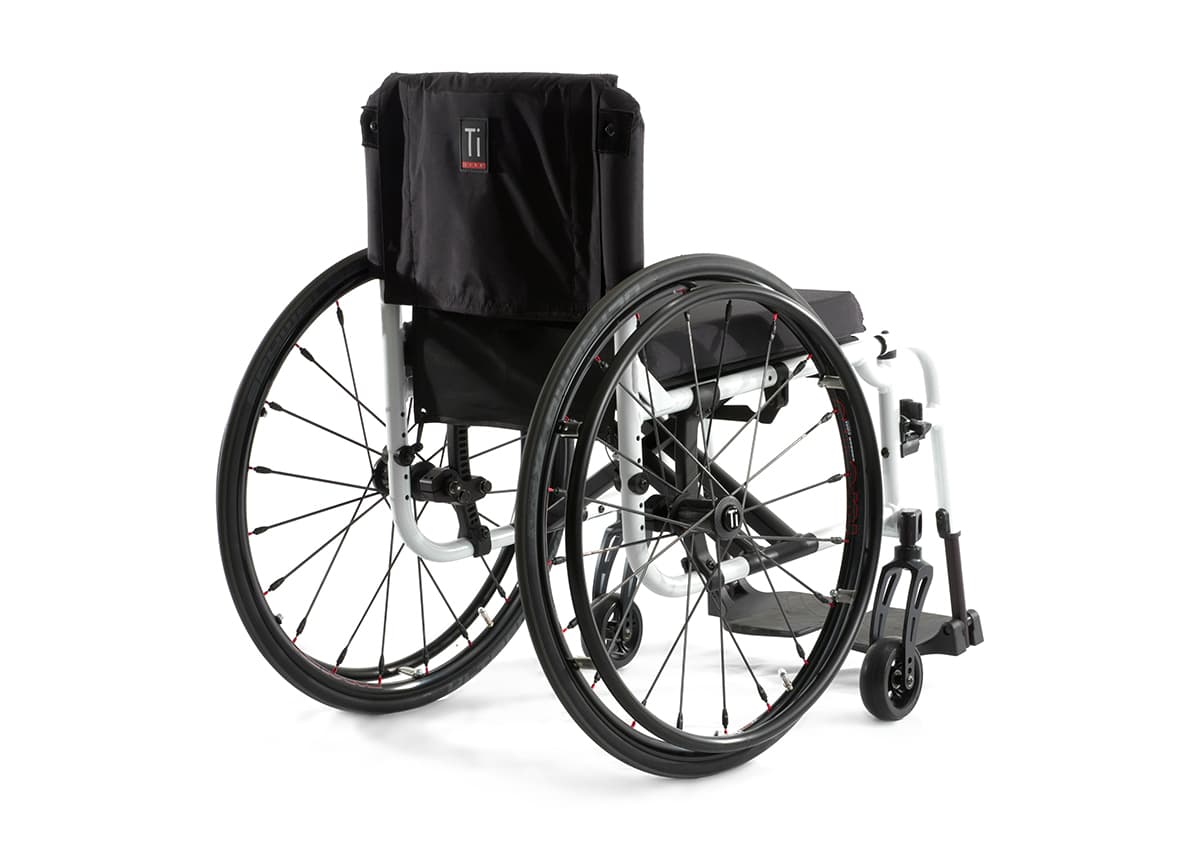

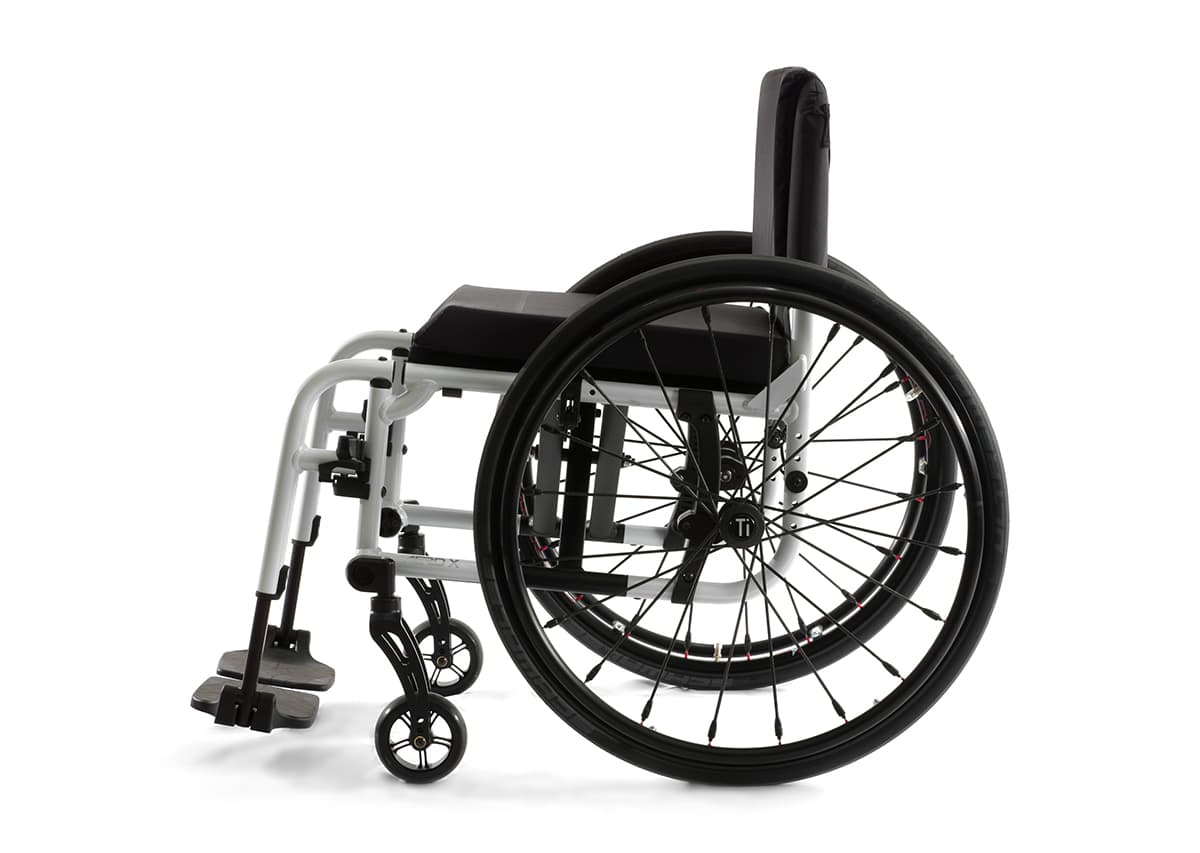

Tilite Aero X
Brand: Bonfire support
The Aero X features an innovative modular design with clean modern lines and configurability. Featuring multiple configurations that include heavy-duty, hemi, and amputee options. Add superior rolling dynamics and full adjustability, and you get an Aero X that excels in both performance and price.
- Ability to add aftermarket seating systems.
- Switching fixed and swing away front ends.
- Growing chair width and/or depth (parts required).
The Tilite Tru-Fit System boasts adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system gives you the option to fine-tune fit your chair because you are not limited to a series of pre-set holes. Also, instead of bolting through frame-weakening holes in a normal folding chair frame, components clamp directly onto the frame. This removes one of the main stress points on today’s wheelchairs by reducing the number of holes in the frame.
Improved Speedloader Design makes for easier, more durable adjustments and two positions (forward/backwards) for caster positioning.

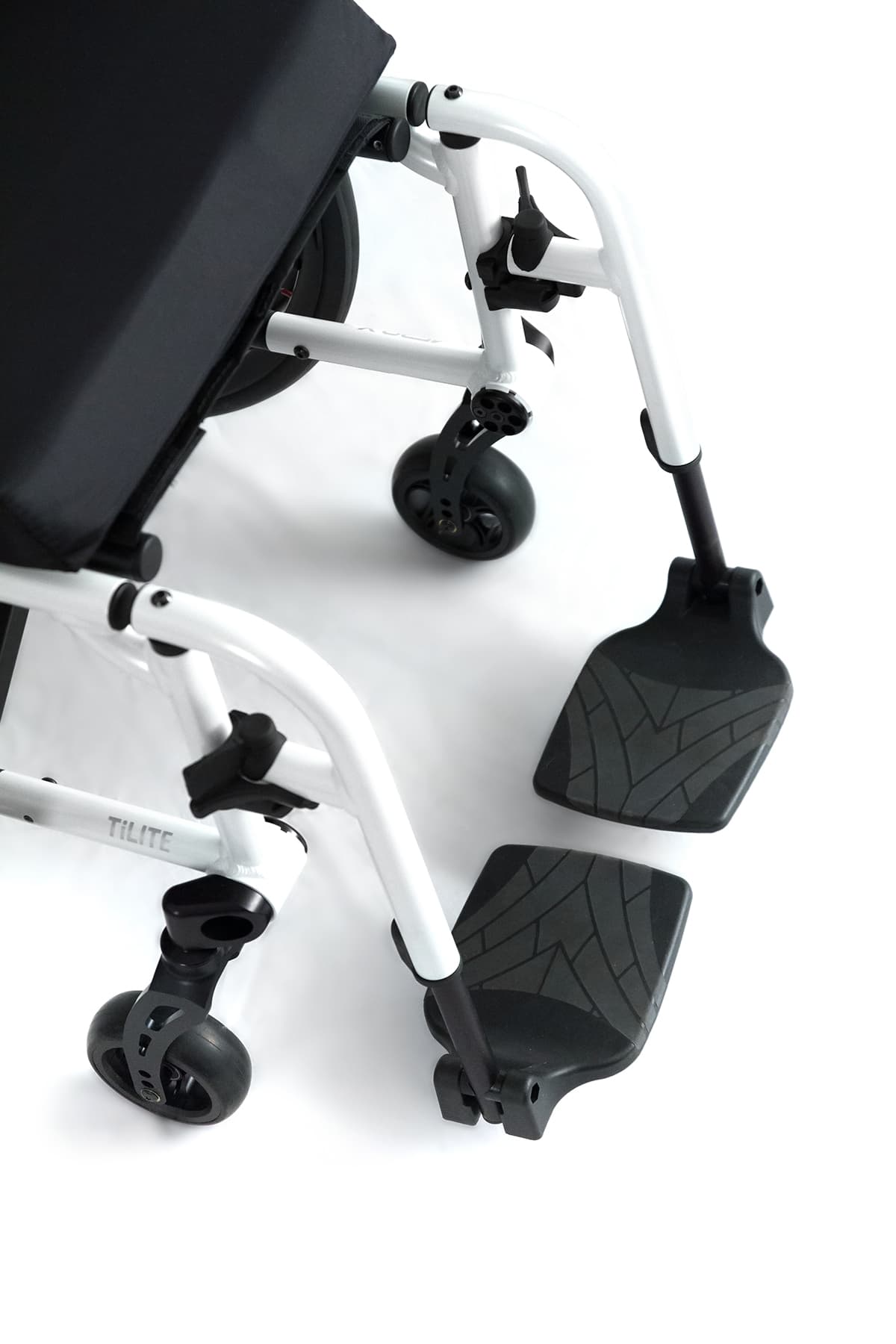

Redesigned Footplates are lighter with a non-slip surface and an updated look.
Curved Axle Plate allows for the best range in centre of gravity adjustment and rear seat height adjustment.
Snap-In Seat Saddles lock the cross tubes in place on TiLite’s rigid folding mechanism. This feature helps the Aero GX achieve rigid chair performance.
The Aero X utilises Machined Plugs to create rear wheel camber. In contrast to using washers to create rear wheel camber, the use of machined camber plugs precisely aligns the Aero X’s rear wheels, allowing the chair to consistently track straight.
Using the free balanced ride selector, you get a more accurate choice of chairs that is suitable for your everyday life. Click the find my balanced ride below to get started.
FIND MY BALANCED RIDE
Minimal Seat Width: 12" - Maximum Seat Width: 22"
Minimal Seat Depth: 12'' - Maximum Seat Depth: 20"
Frame Style: Folding
Frame Material: Titanium
Frame Options: Fixed Front End, Swing Away (All-In-One Swing In, Swing Out, & Removable), Hemi Height Frame, Heavy Duty Frame, Power Adaptable Frame, Reinforced Frame
Ti Fit: N/A
Adjustability: Full adjust
Custom Configuration: Yes
Camber: 0°, 2°, 4°, or 6°
Front Frame Angle: Fixed Front - 70°, 80°, or 85°, Swing Away - 70°, 80°, 85°, or 90°
Footrest Width Options: Standard Taper
Seat Back Type: Folding Seat Back
Center Of Gravity Adjustment: 6"
Transit Options: Transit Tie Down (Occupied), Transport Bracket (Unoccupied)
Movement Style: Full assistance, Both legs mostly, Hemi (one leg and one arm)
Weight Limit: Standard Frame 120.2 kg - Heavy Duty Frame 158.7 kg
Fixed Front - 7 kg
Swing Away - 8.2 kg
Five Years on Frame
One Year on TiLite Components
* Weights and widths based on 16” x 16” chair with 0º camber, minimum rear
wheel spacing and all standard features. Rear wheels are not included in
transport weight. For reference, a pair of standard 24” rear wheels weighs 3.27
