Alber e-fix E35

Brand: Alber

Categories:

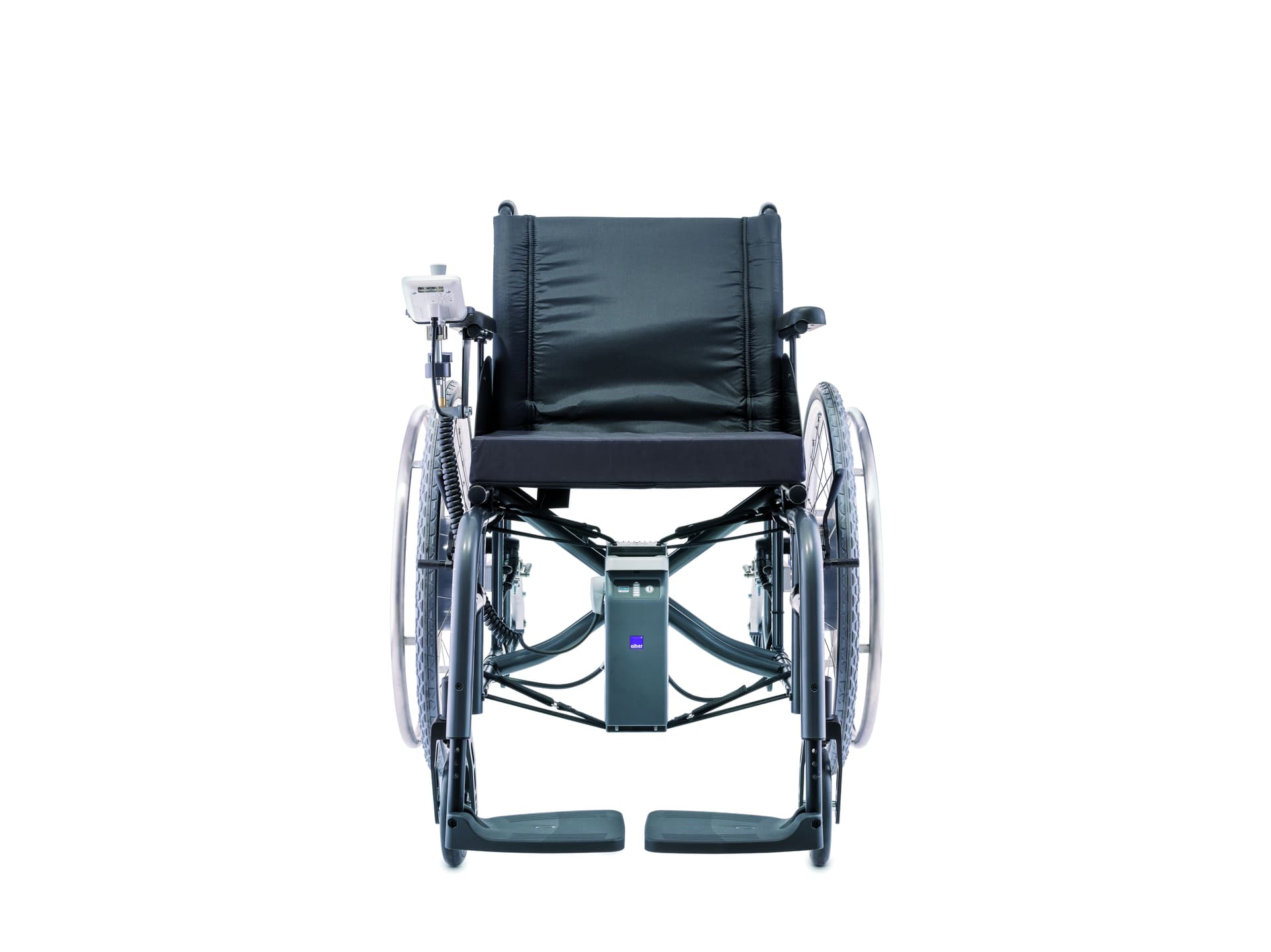

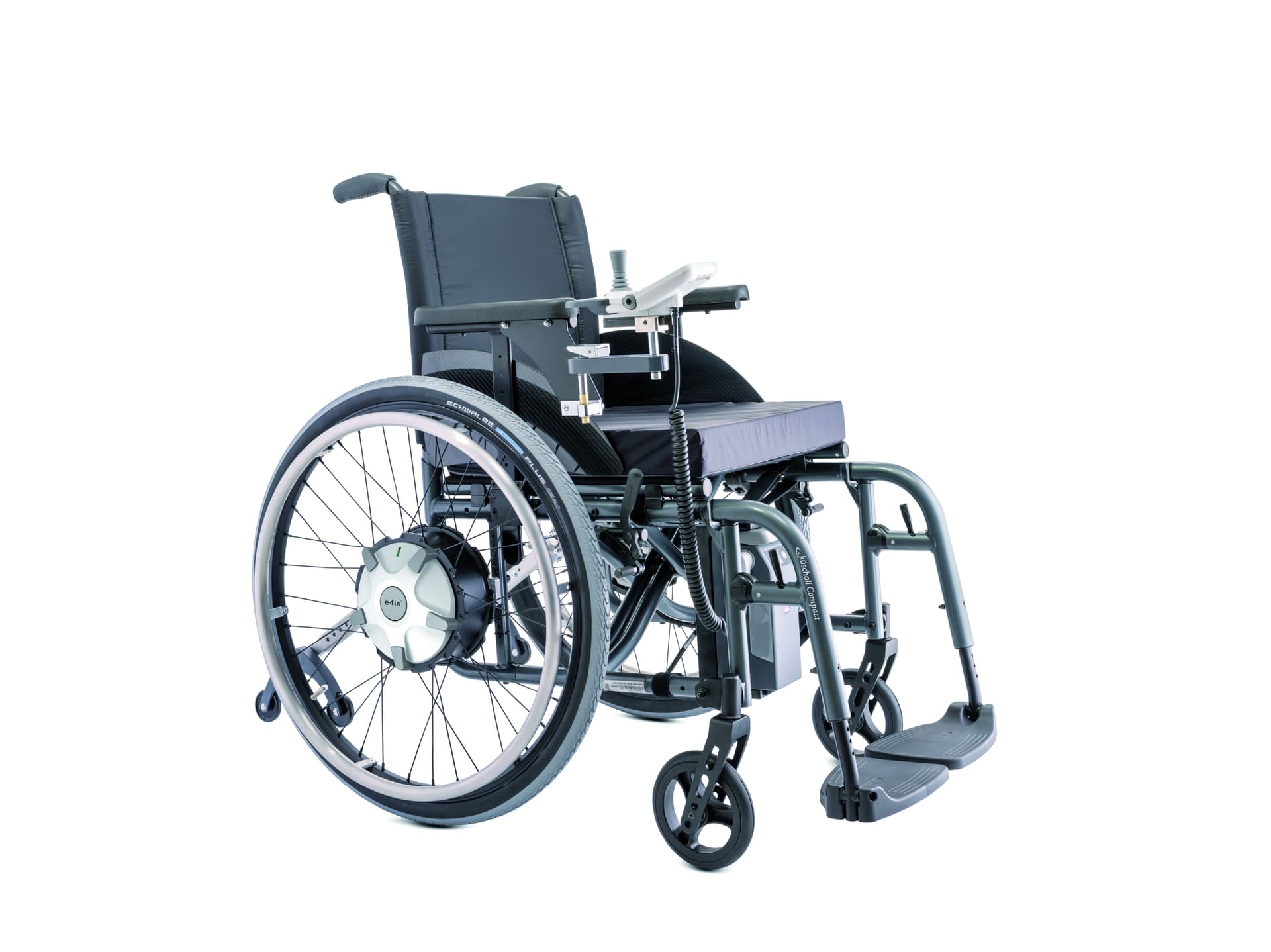

Turn your manual wheelchair into a compact electric wheelchair with the e-fix add-on drive. The drive can be individually programmed and can therefore be adapted perfectly to your personal needs. The electric add-on drive is the simple way to increase your freedom of movement. The e-fix also allows you to cover greater distances and handle slopes effortlessly.

  • Alber E-fix converts a manual chair into a lightweight power wheelchair.
  • It is easy to dismantle and ideal for transport.
  • It fits most of the wheelchairs.
  • E-fix can manage gradients and slopes of up to 20%.
  • Batteries can run up to 16 kms. You can increase the range up to 30 kms with bigger batteries.
  • E-fix combines safety and technology.
  • With E-fix installed, wheelchairs can still remain foldable and portable.
  • Users can easily switch from power to manual operation with a quick turn of the wheel hubs.

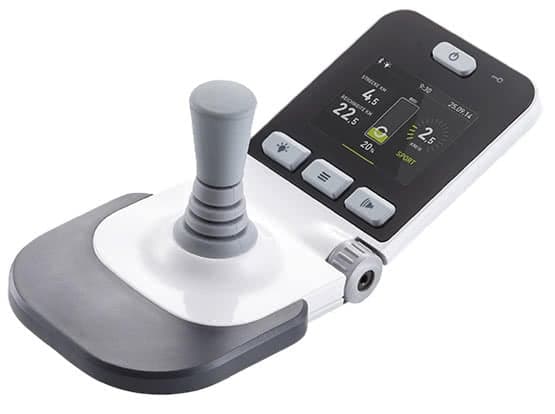

  • The ergonomic joystick controller indicates battery capacity on a back lit LCD panel.

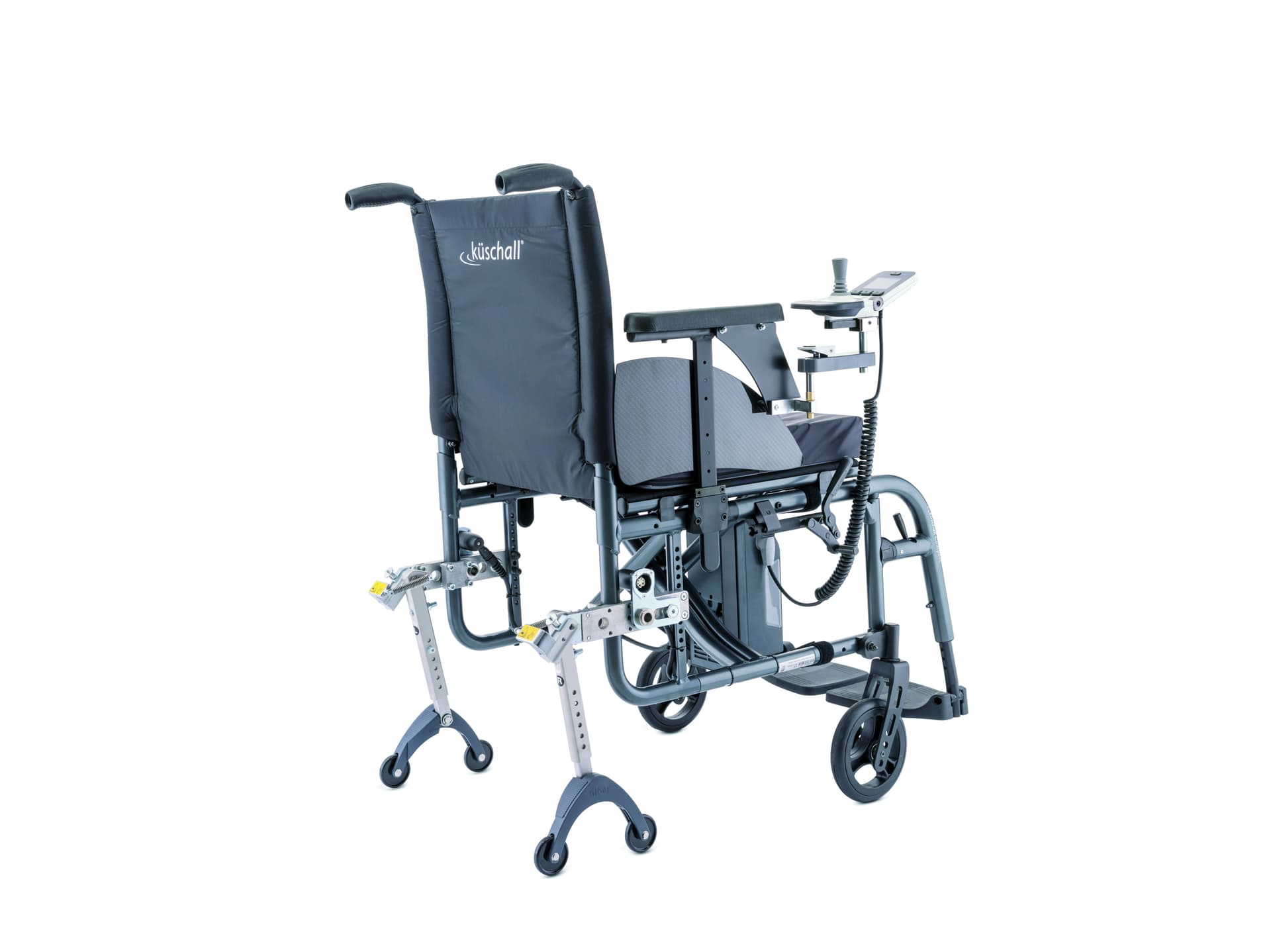

  • E-fix and Scalamobil can be installed on the same wheelchair with the same set of brackets, creating an electric stair-climbing power assist wheelchair!
Technical data:E35E36
Battery pack36 V, 6.0 Ah, 216 Wh36 V, 7.5 Ah, 270 Wh
Battery charger (input)90 – 240 V AC90 – 240 V AC
Battery charger (output)45 V DC45 V DC
Operating voltage36 V36 V
Speed0.5 – 6 km/h (0.4 – 3.7 mph)0.5 – 6 km/h (0.4 – 3.7 mph)
Motor rating2 x 110 W2 x 150 W
Climbing capabilityup to 20 % restricted to wheelchair modelup to 15 % restricted to wheelchair model
Range per single charge (1)up to 16 km (9.94 miles)up to 20 km (12,42 miles)
Wheel dimensions22″ and 24″24″
max. user weight120 kg160 kg
max. permitted total weight170 kg (375 lb)210 kg (463 lb)
Weight of components:
Battery pack2 kg (4.4 lb)2 kg (4.4 lb)
Drive wheel7.8 kg (17.2 lb)8.0 kg (17.6 lb)
Joystick control unit0.6 kg (1.3 lb)0.6 kg (1.3 lb)
