Ottobock Discovery
Brand: Ottobock
Categories:

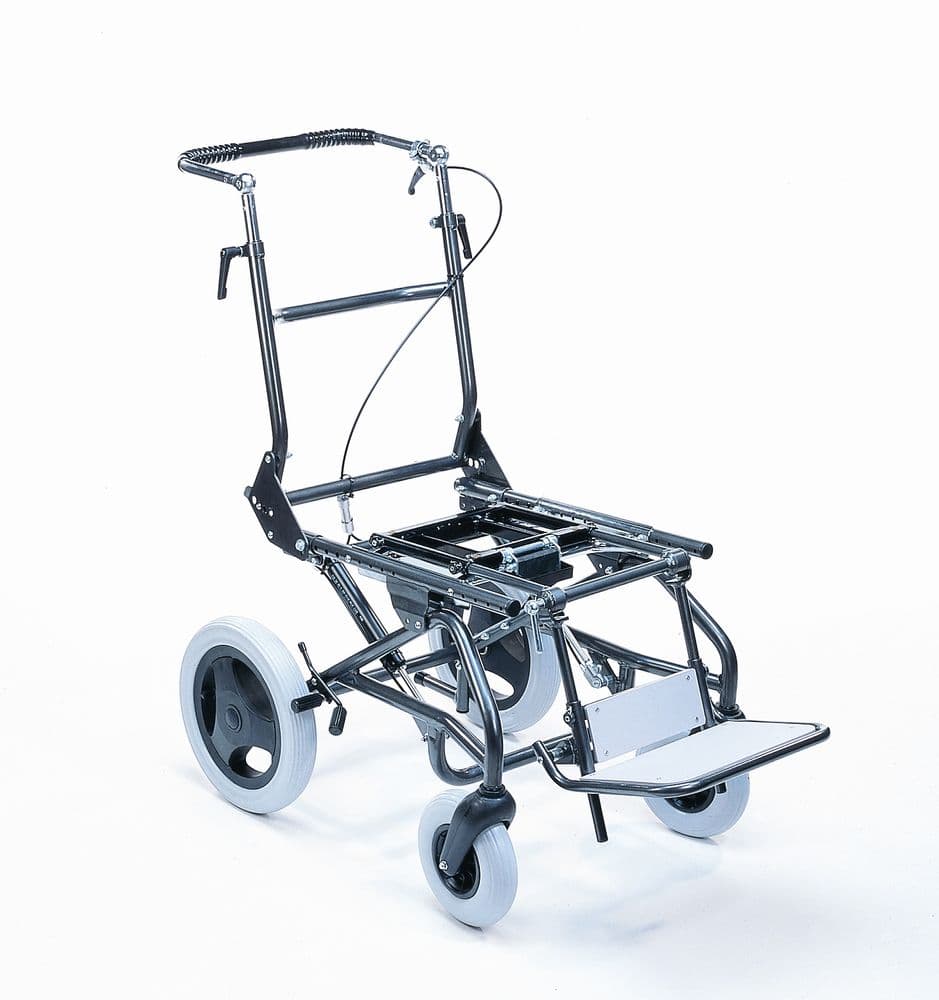

The Discovery is a stable, strong and adaptive tilt in space wheelchair.
Even under high weight-bearing load, you can easily handle the Discovery because the rotation point of the seat tilt has been placed very close to the front of the chair, this along with the gas tilt struts provide a smooth and easy tilt operation for the attendant.
The Discovery has been proven to be open to different seating systems. With a intereference free style back and seat base, you can most after martket seating systems from off the shelf through to custom mould systems. The back angle can also be adjusted easily with a single hand operated release mechanism.
Technical Data
Max. load capacity: 110kg
Frame width (outer edge of seat tubes): 36 / 40 / 45/ 50cm
Seat tube height: (with 0° tilt) 47cm
Wheel diameter front: 8" Rear: 12"
Push handle height adjustment By approx: 15cm
Tilt in space: 0° to 35°
Back angle: 90° to 120°
